JK503规格说明(转舌锁)
产品类别：转舌锁
产品型号：JK503
开孔尺寸：19MM
锁体材质及电镀：锌合金锁芯锁壳 镀铬
钥匙类型及电镀及插拔：5排片铜钥匙 镀镍 钥匙单抽或双抽
固定方式（锁体&舌片）：锁体固定方式螺母，舌片固定方式螺丝或插片
功能尺寸：16/20/25/30mm
适配舌片：可选配多种舌片/可定制舌片
钥匙组合： 300组钥匙组合 KA#198
特殊：钥匙可包胶套或不包胶套，可单边洗齿或双边洗齿，可左转或右转
规格表：
序号 | 锁型号 | 档位 | 钥匙抽拔 | 转向 | L1尺寸mm | L2尺寸mm |
1 | JK503-16 | 2 | 单/双抽 | 90° | 16 | 28 |
2 | JK503-20 | 2 | 单/双抽 | 90° | 20 | 32 |
3 | JK503-25 | 2 | 单/双抽 | 90° | 25 | 37 |
4 | JK503-30 | 2 | 单/双抽 | 90° | 30 | 42 |

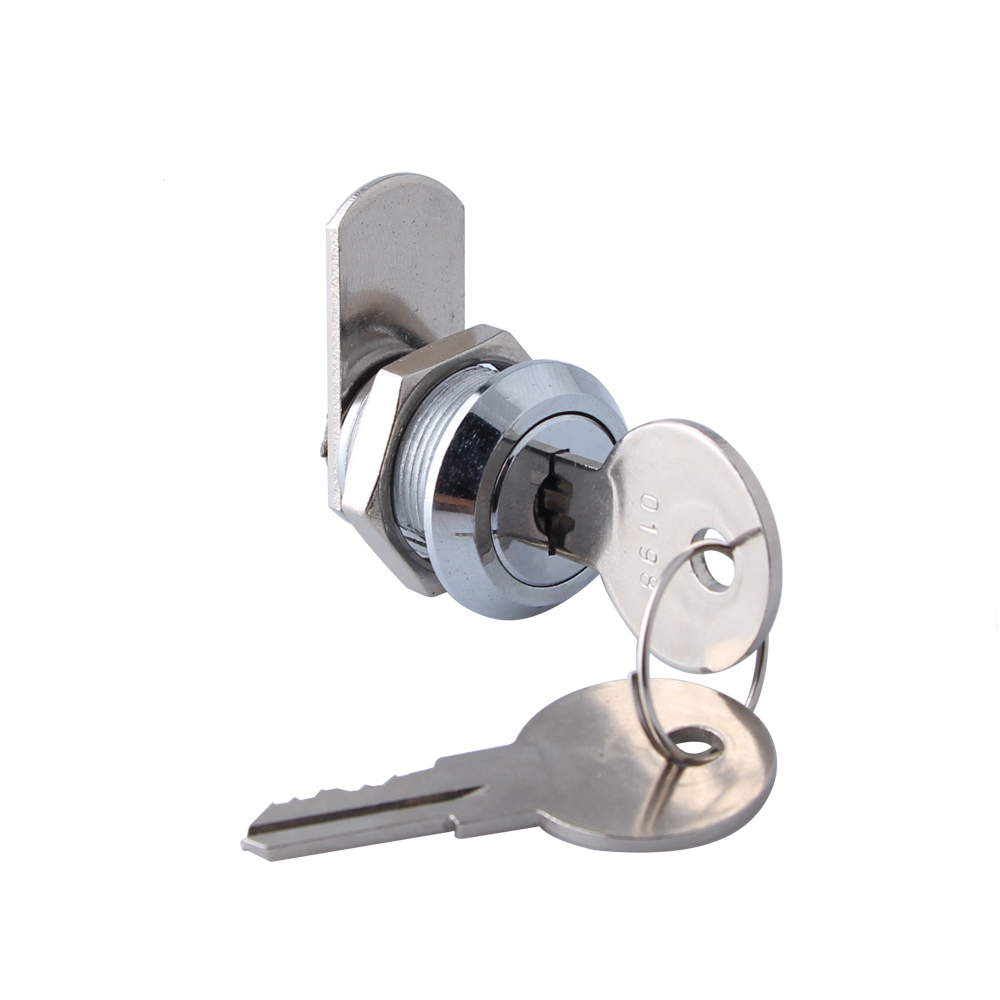

19mm Standard Die-cast Cam Lock
Product type：Cam lock
Item No.：JK503
Recommended hole size：19MM
Lock Material and finish: Zinc alloy housing and cylinder,bright chrome plated.
Key type, finish and pulls: 5 dics tumbler mechanisms, Brass key, nickel plated, Key may be withdrawn in one or both positions.

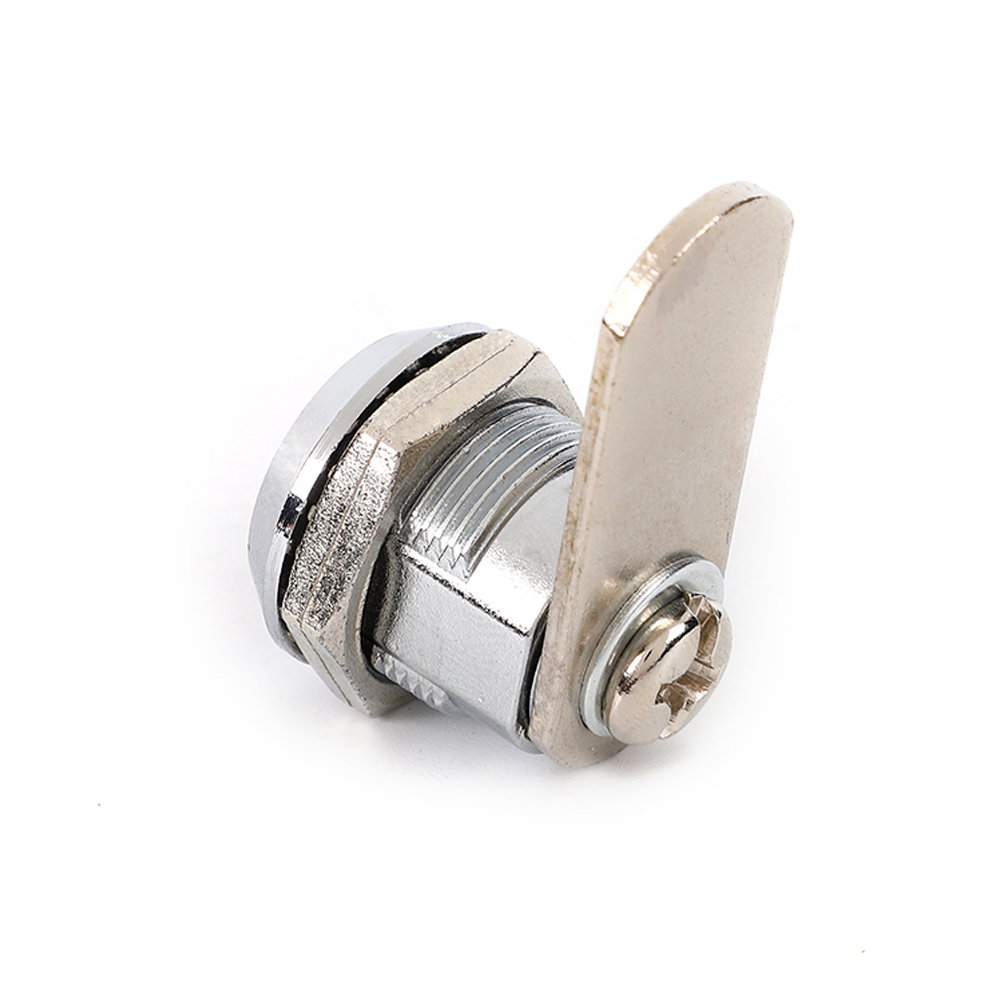

Fixed way（lock&cam): Nut mounted,Cam is fixed by screw or speed clip .
L1 length：16/20/25/30mm
Cam length：Various cam configurations and rotations available.Cam can be customized.
Key combination: 300 KD KA#198

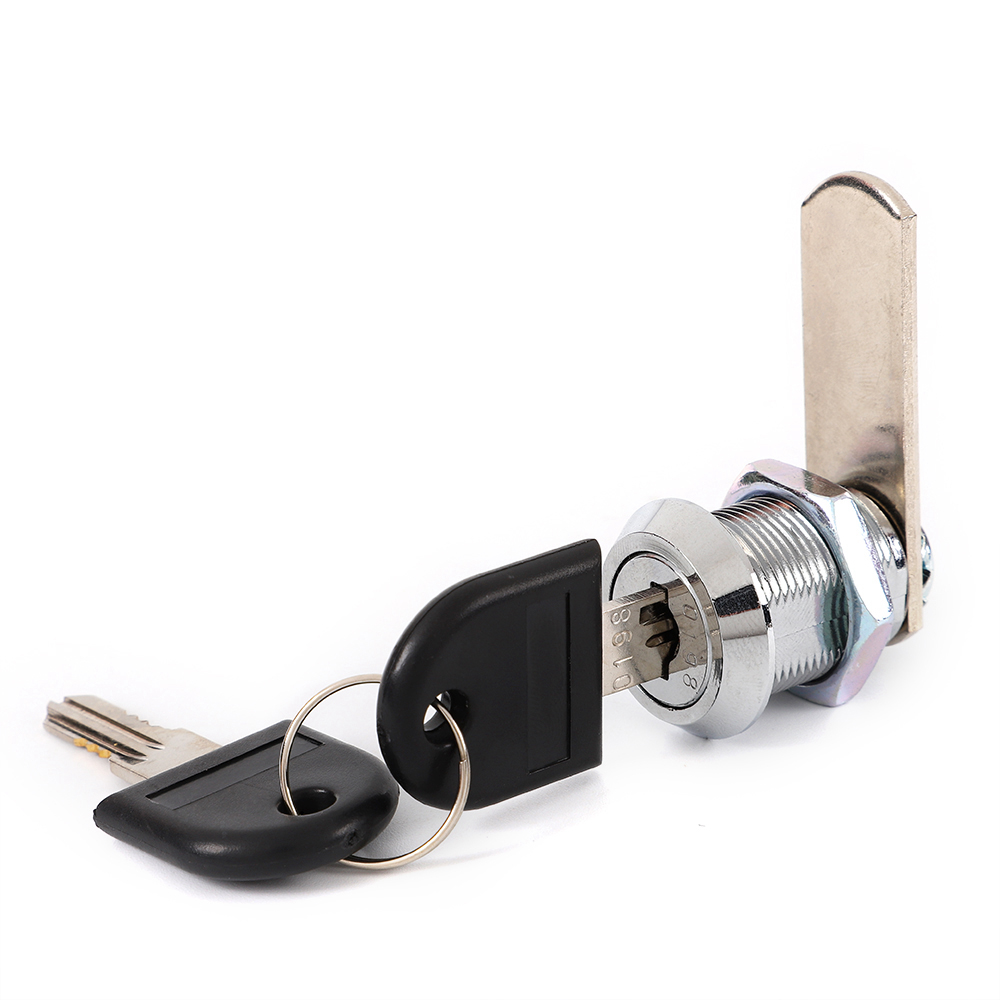

Remark: Key can be with plastic holder or without plastic holder.
The key can be reversible double-bitted brass key. Can be left turn and right turn.
Specification Form：

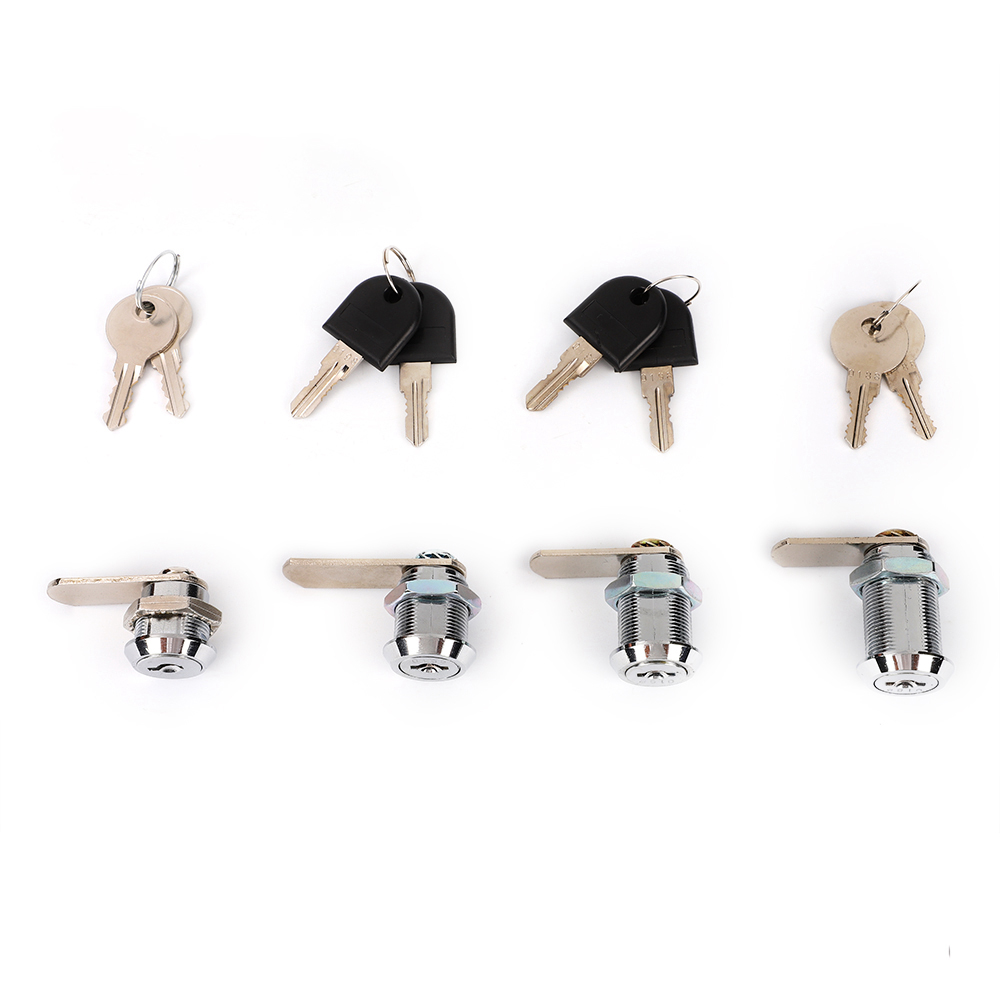

Fig.No | Lock number | Position | Key pull | Turn | L1（mm） | L2（mm） |
1 | JK503-16 | 2 | 1/2 | 90° | 16 | 28 |
2 | JK503-20 | 2 | 1/2 | 90° | 20 | 32 |
3 | JK503-25 | 2 | 1/2 | 90° | 25 | 37 |
4 | JK503-30 | 2 | 1/2 | 90° | 30 | 42 |
产品尺寸图
